Extreme Pressure Greases
Ambient temperature near hot rolling mills and hot forging presses is higher than most other metal forming operations. Most greases that are used in centralised lubrication system of these equipments tend to lose their viscosity at temperatures above 100-150 degrees and begin to flow freely, sometimes flowing out of the lubrication system. Due to overflow or leakages in centralised lubrication of presses, the chequered plates and surrounding areas around the forging press are constantly dirty due to oil overflow and spills. Many times, tramp oil and die lubricant together get accumulated at the bottom/ foundation of the forging press. Apart from oil wastage, it takes special efforts to pump out this dirty black oil from below the forging press. It poses a serious fire hazard as a hot billet or loose scale from hot billet fallen into the accumulated oil below forging press can ignite large fires immediately. At the same time, too thick grease will not flow effortlessly throughout the centralised lubrication system of forging press and will result in choking of press.

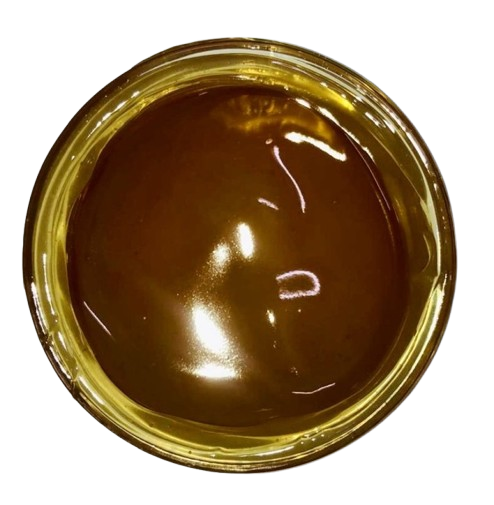

EP0 GREASE

Greases that have good viscosity at ambient temperatures are used in the centralised lubrication of forging presses. However, it is important to check the efficacy of these greases at operational temperatures which may be over 100-150 deg. C near forging presses. Overflow, leakage and spillage of oil can be experienced due to quick melting of grease at high temperature, such that it loses viscosity and turns into free-flowing oil. A solution to this problem is found in the use of effective EP00 grade lithium grease that maintains its viscosity at high operating temperatures as observed in forging presses. The grease is neither too free-flowing nor too viscous. This also ensures optimum lubrication, reduced consumption of grease and prevents wastage. Recently, greases are being customised to suit the specific requirements of centralised lubrication system distributor nozzles and pumps of forging presses. This has given good all-round results, including reduced wastage and prevention of fire hazard due to grease overflow in forge shops.

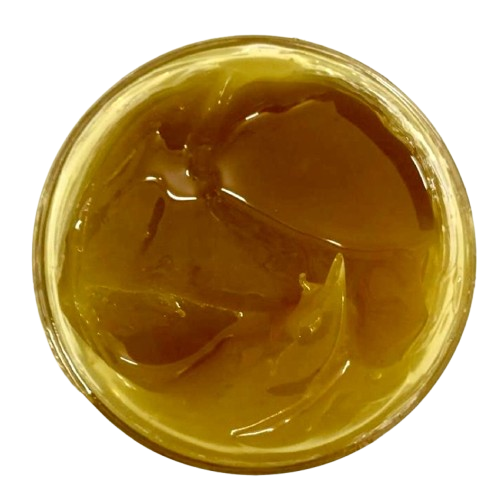

EP00 GREASE

- Clean surface thoroughly before applying manually or with grease gun.
- Always avoid contamination of the grease by dust and/or dirt when applying.
- Preferably use a pneumatic pump system.
- EP greases are especially developed for the lubrication of closed gears and can also be used for chassis lubrication by means of a centralized system.
Benefits of ESPON EP Grease:
- Optimally customised for forging press centralized lubrication systems
- Load on forging equipment is considerably reduced due to decreased friction
- Extended machine life
- Prevents welding and seizure of moving parts
- Excellent anti-rust property/ Resistance to corrosion.
Why choose EP Grease by SPS:
SPS offers Lithium based extreme pressure grease manufactured using superior quality base stocks and specially customised extreme pressure additives for optimum performance.
SPS customizes EP greases to suit specific requirements of lubrication system nozzles and pumps. This has given good all-round results like improved lubricity and reduced wastage.
Even where ambient temperatures drop up to 5 deg. C, EP Lithium greases maintain their stability and viscosity. This feature prevents choking of centralized lubrication systems.
SPS lithium greases meet IPSS:1-09-005 and IS: 7623-1993 (second revision) specifications.
ESPON EP GREASE Specifications
PARTICULARS | EP0 GREASE | EP00 GREASE | EP000 GREASE |
---|---|---|---|
Brand | Espon | Espon | Espon |
Features | Lithium based extreme pressure grease | Lithium based extreme pressure grease | Lithium based extreme pressure grease |
Grade Standard | Technical Grade | Technical Grade | Technical Grade |
Physical State | Paste | Paste | Paste |
Appearance | Yellowish Golden | Yellowish Golden | Yellowish Golden |
Usage/Application | Industrial | Industrial | Industrial |
Applicable Industry | Forging Presses | Forging Presses | Forging Presses |
Type of thickener | Lithium | Lithium | Lithium |
Packaging Type | Special HDPE container | Special HDPE container | Special HDPE container |
Packaging Size | 18 kgs. capacity special HDPE containers or 180 kgs. capacity sturdy metallic drums. | 18 kgs. capacity special HDPE containers or 180 kgs. capacity sturdy metallic drums. | 18 kgs. capacity special HDPE containers or 180 kgs. capacity sturdy metallic drums. |
Worked penetration at 25°C after 60 strokes | 365 | 410 | 455 |
Drop point | 175°C | 165°C | 160°C |
Corrosion on copper strip @ 100°C for 24 hrs. | Negative | Negative | Negative |
Four ball weld load, Kg, Min. | 200 | 200 | 200 |
Viscosity of Oil @ 40°C, cSt | 180 | 180 | 180 |
Delivery Time | Ex-stock | Ex-stock | Ex-stock |
Country of Origin | Made in India | Made in India | Made in India |
